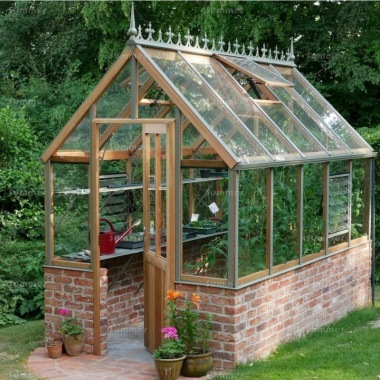

Dwarf Wall Victorian Greenhouse 650 - Cedar, Steep Roof

SPECIAL OFFER - FREE 2 TIER STAGING!

This greenhouse is currently available with our popular two tier modular freestanding metal or wooden slatted staging. Staging dimensions quoted below are nominal lengths.

• Free 4' staging on 4'4" or 6'5" long greenhouses
• Free 8' staging on 8'5" or 10'6" long greenhouses
• Free 12' staging on 12'7" or 14'8" long greenhouses
• Free 16' staging on 16'8" or 18'9" long greenhouses
• Free 20' staging on 20'10" or 22'11" long greenhouses
• Free 24' staging on 24'11" long greenhouses

The metal staging is our green painted 2 tier staging.
The wooden staging is our pressure treated 2 tier staging.
Both types of staging are also available as a separate accessory if you want to add matching staging to other parts of the greenhouse.

• Western Red Cedar frame (a managed and replanted natural resource)
• All timber used in the construction of this greenhouse originates from sustainable forests
• 10 year frame guarantee
• Traditional appearance with steep Victorian style 45 degrees roof pitch
• All timber is treated by total immersion in a high quality preservative which is colourless to enhance the natural beauty of the wood
• Grey powder coated aluminium base plinth (makes greenhouse installation easy)
• Heavy duty ex 2"x2" and 2"x3" cedar framing (finished sizes 45mm x 45mm and 45mm x 70mm)
• Strong frame requires no diagonal braces
• Morticed and tenoned frame joints
• Morticed and tenoned doors and vents
• Toughened safety glass
• Puttyless glazing with substantial external capping screwed in to ensure the glass is tight fitting
• Grey powder coated aluminium gutter with a downpipe to each side
• Black round PVC downpipes and stopends
• Durable aluminium retaining clips ensure that the roof glass is retained securely at the eaves
• The glass overhangs into the gutter to ensure that the cedar framing is not exposed at the eaves
• The glass overhangs the base all round to ensure that the cedar framing is not exposed at low level
• Stainless steel fixing screws
• Aluminium base fixing bolts
• Aluminium ridge end cap
• Roof vents are fitted as standard with automatic openers which react to heat to ensure that in hot weather the window ventilates in your absence
• 1 free roof vent and 1 low level louvre vent included with 6'2"x4'4" and 6'2"x6'5" greenhouses
• 2 free roof vents and 1 low level louvre vent included with 6'2"x8'5" greenhouse
• 3 free roof vents and 2 low level louvre vents included with 6'2"x10'6" greenhouse
• 4 free roof vents and 2 low level louvre vents included with 6'2"x12'7" greenhouse
• Half boarded single hinged door with stainless hinges and key lock
• Inward opening door
• Low threshold doorway for easy access
• Grey powder coated aluminium door threshold
• No door timber in contact with the ground
• Decorative grey powder coated aluminium spandrels at the ridge and eaves
• Decorative apex finials
• Eaves height 5'7" (1708mm) including base plinth
• Ridge height 8'10" (2695mm) including base plinth
• Door height 6'7" (2012mm)
• Door width 2'5" (743mm)
• Dwarf wall height 750mm (approximately 2'6")

THIS HYBRID CEDAR GREENHOUSE: This modern hybrid greenhouse features a strong cedar frame combined with powder coated aluminium to provide a sleek modern look with market leading durability and performance. Toughened safety glass is included as standard with no overlapping glass and a sophisticated modern dry glazing system. The colourless stain enhances the natural beauty of the high grade cedar. The base plinth and door threshold are durable aluminium to ensure lasting performance. Aluminium gutters and louvre vents are also included as standard. All aluminium is powder coated. Options include full length built in aluminium staging and shelving.

HYBRID ALUMINIUM AND CEDAR CONSTRUCTION: This modern hybrid greenhouse combines the warmth and beauty of cedar with the rigidity and durability of extruded aluminium. Intelligent use of aluminium protects the timber and prolong its life. The base plinth and the door threshold are aluminium which ensures no direct contact between any timber and the ground. Almost all of the cedar framing is enclosed and internal which ensures lasting strength and good looks. The aluminium components are powder coated in a shade of grey which compliments the cedar when new and as it fades.

HEAVY DUTY CEDAR FRAME: The cedar frame features substantial ex 2"x2" (45x45mm) and ex 3"x2" (70x45mm) timber which requires no additional bracing. The design combines traditional joinery features such as morticed and tenoned joints with modern production techniques to ensure great strength and fast installation. All cedar is treated with a colourless preservative which provides a waterproof seal without hiding the beautiful natural colour of the cedar. Rounded edges enhance the soft natural feel of the wood.

DURABLE ALUMINIUM COMPONENTS: Most of the aluminium components are used in the parts of the greenhouse which are the wettest. This includes the base, the door threshold and the gutters. In addition, extruded aluminium provides better performance and durability for moving parts such as the door runners, the roof vent hinge mechanism and the louvre vent mechanism. The aluminium components are powder coated in a shade of grey which has been chosen to complement the appearance of cedar when it is new but also as it fades to a silvery grey colour.

DWARF WALLS: Dwarf walls can be built in your choice of brick or stone. You can choose engineering bricks for durability or you may be able to closely match the walls of your existing property. Dwarf walls offer maximum heat retention in the winter and are ideal for growing shade-loving plants such as ferns. Our prices do not include the dwarf walls. The greenhouse frames are prefabricated so the frame sizes cannot be adjusted to fit the dwarf walls. Instead the dwarf walls must be built to precisely the right size. Bricks are ideal but irregular natural stone may require carefully cropping.

WESTERN RED CEDAR: Western Red Cedar is a naturally resilient timber which lasts longer than pine and other softwoods, even if never treated from new. It has been widely used in construction for over a century. During this time cedar has deservedly earned an unrivalled reputation for its attractive appearance and extraordinary durability. It is the ideal choice for people who are too busy to maintain their garden building. This oily timber has a strong but pleasant aroma which repells insects. Cedar contains hardly any knots. If untreated it will fade to a silvery grey colour. Western Red Cedar is a sustainable resource from the well managed forests of North America.

POWDER COATED ALUMINIUM: The powder coated finish is more attractive than the stark silver finish aluminium greenhouses. The tough finish also has excellent weathering properties and retains its gloss and colour superbly. A good example of powder coating is the finish on your washing machine. Powder coated aluminium greenhouses have a similar finish.

TOUGHENED GLASS: Toughened glass is the best glazing material for use in greenhouses. It is around 6 times stronger than normal glass so it is less likely to break and when it does break toughened glass breaks into harmless small pieces. This makes toughened glass the best option for all the family including children, pets and the elderly. Toughened glass also strengthens the frame and it is heavy which helps to resist wind. Although size limits apply, toughened glass panes are longer than horticultural glass, with no overlapping glass and fewer joins. Where required, joins are neat in-line H-profile joins. Greenhouse glass is subject to lower visual standards than other more expensive glass and may include blemishes or imperfections which do not adversely affect the performance.

BASE PLINTH: The base plinth makes installation much easier. It is designed to be a portable and prefabricated foundation beam. The plinth features a flat underside to spread the weight of the greenhouse over a larger area. The base plinth can be placed on any flat and level surface including soil, gravel, decking, concrete or paving slabs. It is best to prepare a perimeter footing of concrete or paving slabs for the base plinth to stand on. However, with care the base plinth can be placed on any surface including soil or gravel provided that the ground is flat and level.

GREENHOUSE LOCATION: Ideally your greenhouse should have a clear space at least 18" wide on all sides, if possible. This ensures easy access for both installation and future maintenance. In reality this is often not practical and at many sites it is not needed. A reduced clearance is often possible on one or two sides. You should cut back or remove any nearby shrubs and trees. Remember to allow for future growth. Ideally the ridge of a greenhouse should run from east to west. The best position for a freestanding greenhouse is a sunny spot outside the shadow of nearby buildings and trees. A sheltered position is best otherwise additional screening may be advisable. Plants need plenty of water so your greenhouse should be close to a water supply and the site should be well drained.

BASE AND DWARF WALL PLAN: Soon after the order date we will forward plans of the base and dwarf walls with all necessary dimensions such as door opening widths and diagonal dimensions.

SIZES - LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear including the door wall. The length refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.

• Choice of cedar or aluminium external capping
• Grey powder coated aluminium staging, length to suit the greenhouse
• Grey powder coated aluminium high level shelving, length to suit the greenhouse
• Ridge crests
• Freestanding staging and potting tables
• Additional roof vents with automatic openers
• Additional louvred vents
• Automatic louvre openers
• Rainwater adaptor kits - with all the parts you need to connect both gutters into one water butt
• Attractive wooden slatted water butts
• Internal roller blinds - to protect your plants in a summer heatwave!
• Potting trays
• Seed trays
• Cedar cold frames
• Propagators
• Electric and gas heaters
• Thermometers and soil gauges
• Automatic watering systems

CEDAR CAPPING: The external capping protects the main structural framing timber which remains dry in all weather. Cedar capping provides a softer and more traditional appearance. The natural durability of cedar combined with the use of aluminium in vulnerable areas ensures that cedar capping will last. The cedar capping is treated with a colourless preservative.

ALUMINIUM CAPPING: With aluminium capping specified, there is hardly any external timber. The appearance is more modern but the overall impression remains of a beautiful cedar greenhouse. With the main structural timbers protected from the elements, the aluminium capping provides the ultimate performance with the look and feel of cedar and the durability of aluminium. The aluminium capping is powder coated grey.

AIR BRICKS IN DWARF WALLS: Air bricks can be built into the dwarf walls at regular intervals, which is an inexpensive way to provide low level ventilation. This will provide a healthy air flow through the greenhouse to ensure improved growing conditions and better crops.

VENTILATION: Improved ventilation increases the air circulation through the greenhouse for better growing results. Automatic openers react to heat which ensures that in hot weather the vents open in your absence and then close again when its cooler. Louvred ventilators provide a healthy air flow through the greenhouse to ensure improved growing conditions and better crops. Vents are an integral part of the greenhouse so it is easier to fit extra vents at the outset. Some plants such as alpines require more ventilation than others. If you are not yet sure which plants you are likely to grow improved ventilation will give you more versatility.

BUILT IN ALUMINIUM STAGING: Our built in aluminium staging provides a useful work surface and additional growing space in your greenhouse. It is bolted to the greenhouse frame and adjustable to any height. There are no legs below the staging, which gives you more flexible storage space. The staging is made to the same lengths as the internal walls to ensure a neat fit when a full length staging is specified. For this reason the actual length of the staging may be slightly less than the nominal lengths listed. If the staging is fitted to one side only this leaves the other side free for growing taller plants such as tomatoes. The staging can also be fitted to both sides to maximize the growing area for shorter plants.

BUILT IN SLATTED SHELVING: The built in slatted shelving matches the staging although it is not as wide. It is fixed to the greenhouse frames and provides extra growing space or useful extra storage. The shelving is adjustable to any height but it is often fitted at a higher level than the staging. Often the shelving is fitted above the staging where it provides handy storage at your fingertips directly above the main growing area. The shelving can also be fitted at waist height for use as narrow staging on one or both sides. The shelving is made to the same lengths as the internal walls to ensure a neat fit when a full length shelving is specified. For this reason the actual length of the shelving may be slightly less than the nominal lengths listed.

HEATERS: We offer a huge range of heaters so whatever your specific requirements we have a heater to do the job. Our electric heaters require a standard domestic 13 amp electricity supply. Our propane gas heaters require permanent trickle ventilation when in use. As an approximate guide, a 3kw heater will heat a greenhouse up to 8'x12' or provide frost protection only up to 10'x15' in normal site conditions. A 1.5kw heater will normally heat a greenhouse up to 6'x8' or provide frost protection only up to 6'x12'. Internal partitions are often used in large greenhouses to create a smaller warm room which is cheaper and easier to heat.

HEATING REQUIREMENTS: Heating requirements vary for several reasons. Location is one factor with more heating required in Scotland than in southern England and less heating required in a sheltered position. The design is also a factor. For example, dwarf walls improve the insulation and lean to greenhouses absorb warmth from the existing wall. Another factor is the materials used. Polycarbonate greenhouses retain heat better than glass and wooden greenhouses retain heat better than metal greenhouses. We recommend you to buy a bigger heater than you need - you can always turn it down.

ROLLER BLINDS: Shading is normally required on one side of the greenhouse only, the sunny side. Attractive and versatile, these fully retractable and tensioned roof roller blinds will protect your plants. Internal blinds also provide significant insulation and reduce winter heating costs. Each blind provides shade for one glazing section. Roller blinds are normally fitted to one side of the roof. This protects against the strongest sunlight from directly overhead. If extra shading is required the blinds can be fitted just as easily in the walls of the greenhouse. The length of a blind can be reduced easily if required to allow for protruding vents handles. All fittings are supplied. DIY installation requires only a spanner.
